Horizontal bracket, top left / bottom right ZW-813 – AiFO

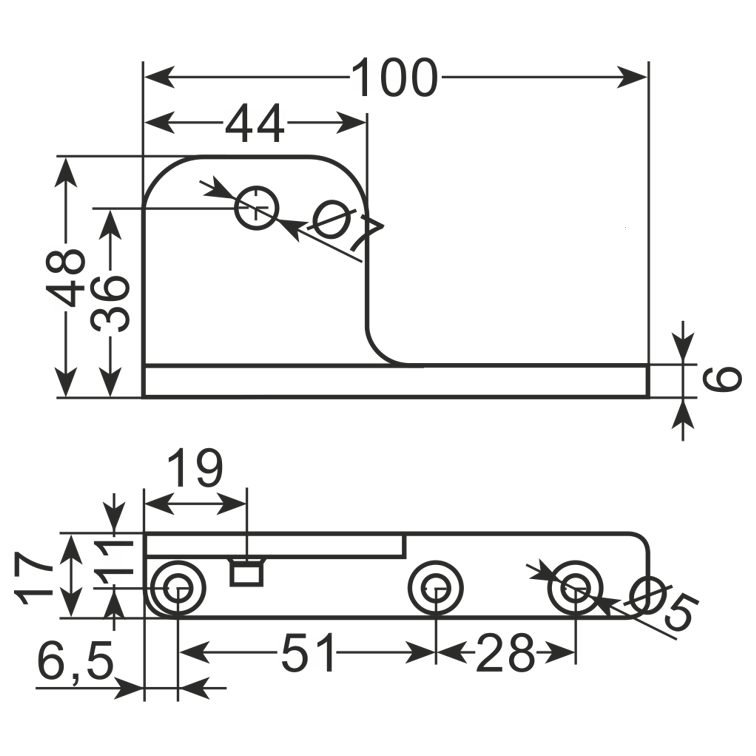

Technical drawing

Horizontal bracket, top left / bottom right ZW-813 – technical drawing

Bracket · AiFO

Horizontal bracket, top left / bottom right ZW-813

Item no. ZW-813 · EAN 2010000055564

  • horizontal
  • for hinge ZW-820-2
Material
ZnAl5
Data sheet PDF, p. 10
Check price and availability Request a quote

Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.

Manufacturing

Custom projects (R&D)

Catalogue

All categories: Hardware, fittings

Category

Hinges and brackets

Enquiry

We will quote Horizontal bracket, top left / bottom right ZW-813 for your appliance

Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
