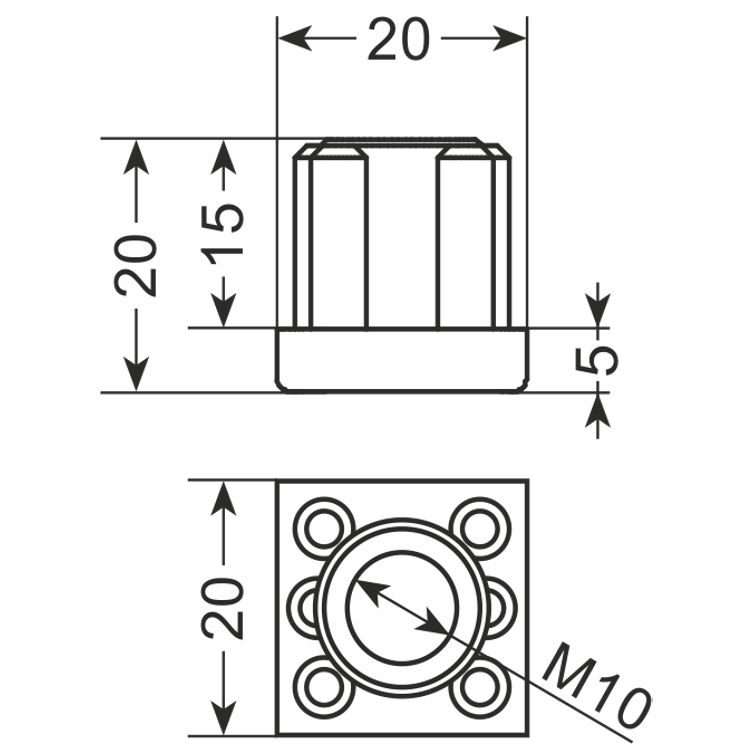

Technical drawing
Profile end cap · AiFO
Threaded end cap for square tube SR-ZG20x20 black
Item no. SR-ZG20x20 · EAN 2010000144237
- made of black polyamide
- for square tube
- Colour
- black
- Material
- polyamide
- Tube type
- square tube
In brief
- A specific size, not a collective item: square profile 20 × 20 mm and an M10 thread.
- Body of black polyamide.
- It provides a ready threaded socket in the profile without welding in a nut.
Prices and stock levels are in the B2B shop. Larger quantities and complete sets are quoted individually.
Threaded end cap for square tube (20x20 mm, M10) SR-ZG20x20 black – how to choose the right one
SR-ZG20x20 is an end cap of black polyamide for a 20 × 20 mm square profile, with an M10 thread. Unlike the collective item SR-ZG, this part number describes one version with the dimensions given, so nothing has to be added when ordering.
A 20 × 20 mm profile is one of the smallest sections found in metal frames and furniture. With such a small outline, a ready thread in the body simplifies the structure: the inside of the profile leaves little room for seating anything else.
Polyamide plays a double role here – it is the material of the body and of the thread itself. The component enters the profile without welding, and its black surface is at the same time the visible finish of the closed profile.
How to match the leg to the profile, the load and the unevenness of the floor – we explained it in the selection guide for this category.
Where it works
- Small frames and surrounds made of 20 × 20 mm profile
- Display units and exhibition structures of light construction
- Metal furniture assembled without a welding station
- Structures in which a threaded socket has to be created at the end of a profile
FAQ
Frequently asked questions
Have not found your answer? Give the profile, the load and the adjustment range – we will select the leg.
Ask a questionDoes it fit a profile of a dimension other than 20 × 20 mm?
No, this part number is assigned to one outline. The remaining sections are served by the collective item SR-ZG, covering several body sizes.
What does an M10 thread in the end cap give?
A ready socket at the end of the profile, into which a component with a matching stem is screwed. Thanks to this, a separate nut does not have to be seated in the structure.
Enquiry
We will quote Threaded end cap for square tube (20x20 mm, M10) SR-ZG20x20 black for your appliance
Give the profile size, the load and the adjustment range you need – we will reply with a selection and a quote.
