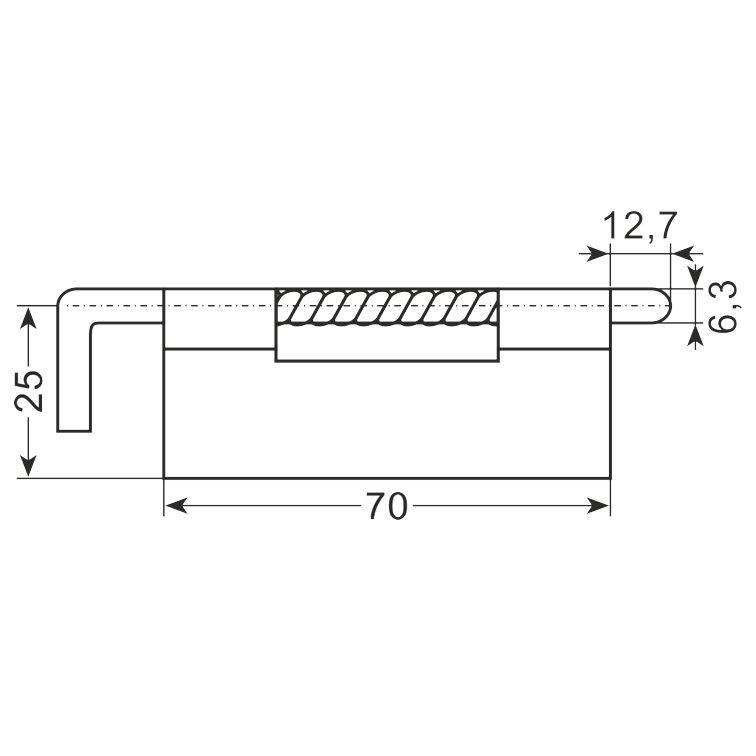

Technical drawing
Handle · AiFO
Bolt (stainless steel) ZT-CPI70
Item no. ZT-CPI70 · EAN 2010000052587
- made of stainless steel AISI-304
- with a spring
- Housing material
- stainless steel
In brief
- The larger index of the CPI pair – the same construction, a different size.
- AISI-304 stainless steel, return spring as standard.
- The choice between 50 and 70 is settled by the room on the leaf, not by function.
Prices and stock levels are in the B2B shop. Locks on a single universal key are put together to order.
Bolt (stainless steel) ZT-CPI70 – how to choose the right one
ZT-CPI70 is a bolt in AISI-304 stainless steel with a spring, the second size in the CPI series. It works exactly like the smaller index, and what sets it apart is the scale of the fitting itself.
With two twin items, the mounting geometry decides: how much flat surface there is on the leaf, how far the pin reaches and whether anything fouls the seal. The manufacturer publishes no dimensions, so a trial fit in the intended place is a quicker route here than analysing the catalogue.
When replacing on equipment in service, the simplest approach is to reproduce the hole centres of the old fitting. New drilling in a refrigeration leaf always carries the risk of hitting the insulation layer.
How to match the handle to the door thickness and settle the key system – we explained it in the selection guide for this category.
Where it works
- Larger leaves with room to spare for the fitting
- Replacing a bolt with similar hole centres
- Catering back-of-house areas under a strict hygiene regime
- Technical doors opened a dozen or so times a day
FAQ
Frequently asked questions
Have not found your answer? Give the door thickness and the locking method – we will select the handle and the lock.
Ask a questionHow do you know which size to order?
Most reliably from measuring the mounting location and the existing fitting. The manufacturer's description stops at the material and the spring, so the catalogue will not settle it on its own.
Is AISI-304 suitable for cold stores?
Yes, this grade is standard in catering and processing equipment. Where there is constant contact with brine or chlorine, we additionally ask about a version in a more resistant steel.
Enquiry
We will quote Bolt (stainless steel) ZT-CPI70 for your appliance
Give the door thickness and the locking method – we will reply with a selection and a quote.
