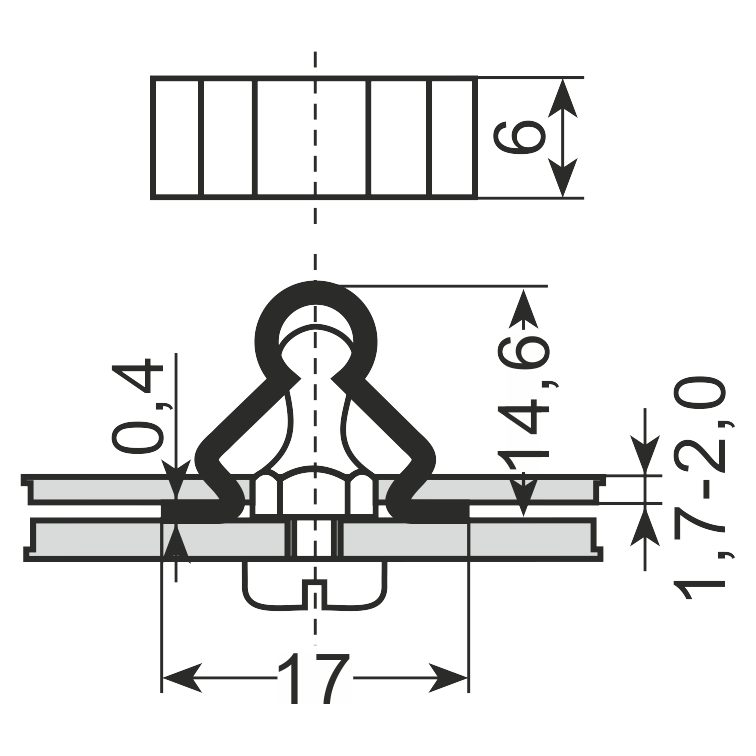

Technical drawing
Catch · AiFO
Spring catch ZT-ZS4434-4
Item no. ZT-ZS4434-4 · EAN 2010000118665
- made of phosphated steel
- Housing material
- phosphated steel
- opening
- Ø10,5 / 9 x 9 mm
In brief
- The last index in the ZS4434 series in the phosphated version.
- Mounting recess: Ø10.5 mm or a 9 × 9 mm square.
- A part that is cheap to replace, intended to work out of sight.
Prices and stock levels are in the B2B shop. Locks on a single universal key are put together to order.
Spring catch ZT-ZS4434-4 – how to choose the right one
ZT-ZS4434-4 closes the three-item series of spring catches in phosphated steel. Like the other variants, it is fitted in a Ø10.5 mm or 9 × 9 mm opening.
Fittings of this class are treated as a consumable. The blade flexes at every cycle, so after years it loses some of its tension – and replacement is cheap and quick enough that there is no point in investigating why it weakened.
A spare piece in the service drawer settles most reports of the "the door will not stay shut" kind. You take the old one out, clip the new one in, and the matter ends with a single visit.
How to match the handle to the door thickness and settle the key system – we explained it in the selection guide for this category.
Where it works
- Quick replacement on a service call
- Parts stock in the workshop and in the technician's van
- Furniture where the fitting is not visible
- Constructions with an existing opening from the previous fitting
FAQ
Frequently asked questions
Have not found your answer? Give the door thickness and the locking method – we will select the handle and the lock.
Ask a questionHow do you tell that a spring catch has worn out?
The leaf starts to stand proud or swings open at a nudge, although the fitting looks intact. That is a sign that the blade has lost its tension and no longer returns to its original shape.
Does replacement require special tools?
No, with the recess already there a basic fitting kit is enough. Access to the mounting position is often harder than the operation itself.
