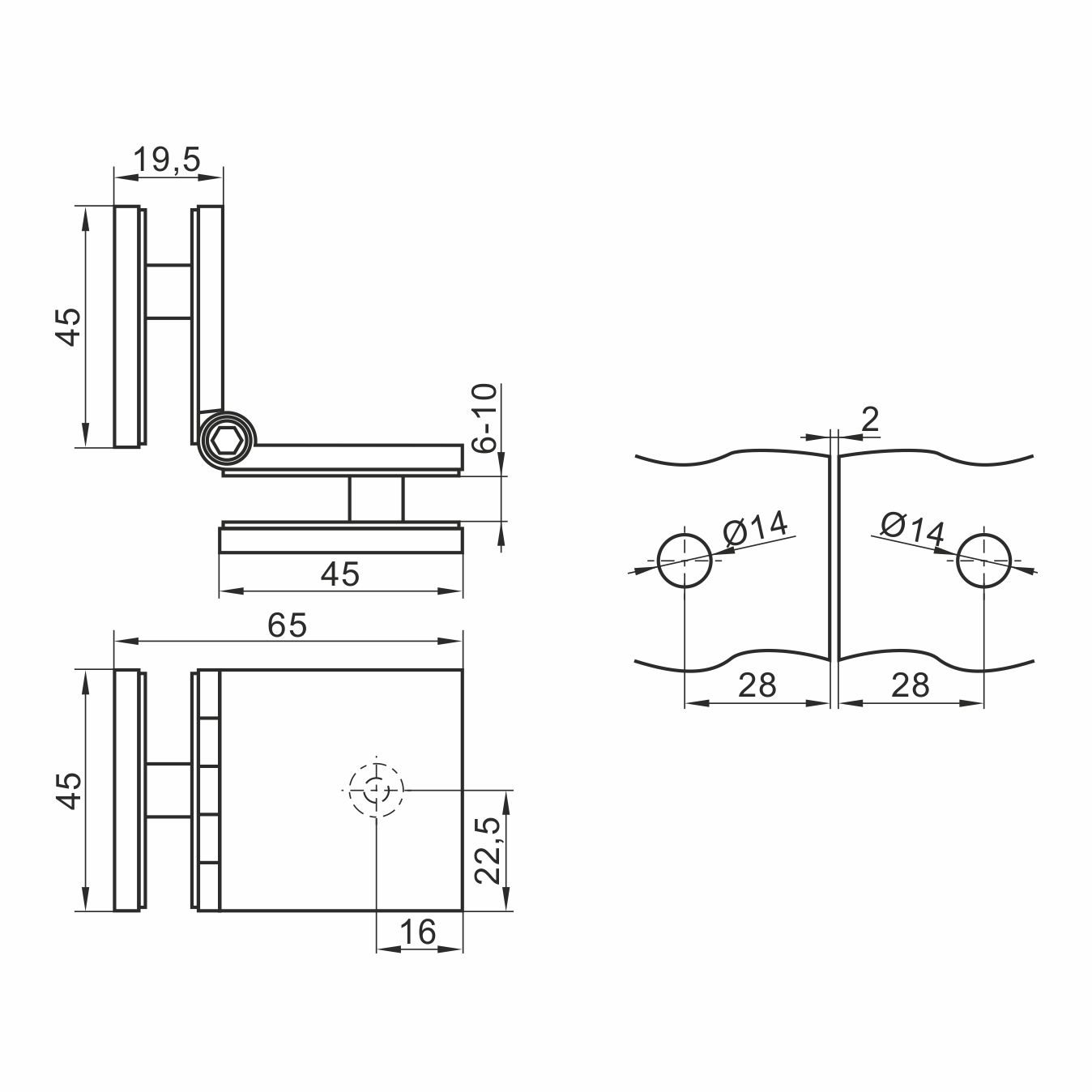

Technical drawing
Hinge · AiFO
Glass hinge (chrome-plated) ZW-SH180
Item no. ZW-SH180 · EAN 2010000136812
- made of chrome-plated brass
- for glass 6 mm to 10 mm thick
- Material
- chrome-plated brass
- Glass thickness [mm]
- 6 - 10 mm
- maximum load
- 20 kg for a top/bottom pair of hinges
- Glass thickness
- 6 - 10 mm
In brief
- Glass thickness range: from 6 to 10 mm.
- Maximum load 20 kg for a top and bottom pair of hinges.
- Material: chrome-plated brass.
- The lowest load capacity among the fittings covering 6–10 mm glass.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Glass hinge (chrome-plated) ZW-SH180 – how to choose the right one
ZW-SH180 is a glass hinge in chrome-plated brass, taking panes from 6 to 10 mm thick. The maximum load is 20 kg for a pair of hinges fitted at the top and at the bottom.
A figure given per pair rather than per piece has a direct bearing on selection. Twenty kilograms is the entire weight of the leaf, so with 8 mm glass it starts to limit the format even on small doors.
Stronger models work in the same thickness range – ZW-GL12 and ZW-GL11M, declared at 45 kg. ZW-SH180 is the choice for light doors, where the size of the fitting matters rather than a reserve of load capacity.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Small glazed doors in display cabinets
- Display cabinets with glass from 6 mm thick
- Installations in which the fitting is to be chrome-plated
- Glass leaves with a weight within 20 kg
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionDoes the 20 kg apply to a single hinge?
No, the value applies to the top and bottom set. When calculating the weight, the whole leaf is taken into account, not half of it.
What if the pane is 4 mm?
It falls outside the declared range and the clamp will not grip it evenly. For thinner panes the range includes fittings specified from 5 mm.
