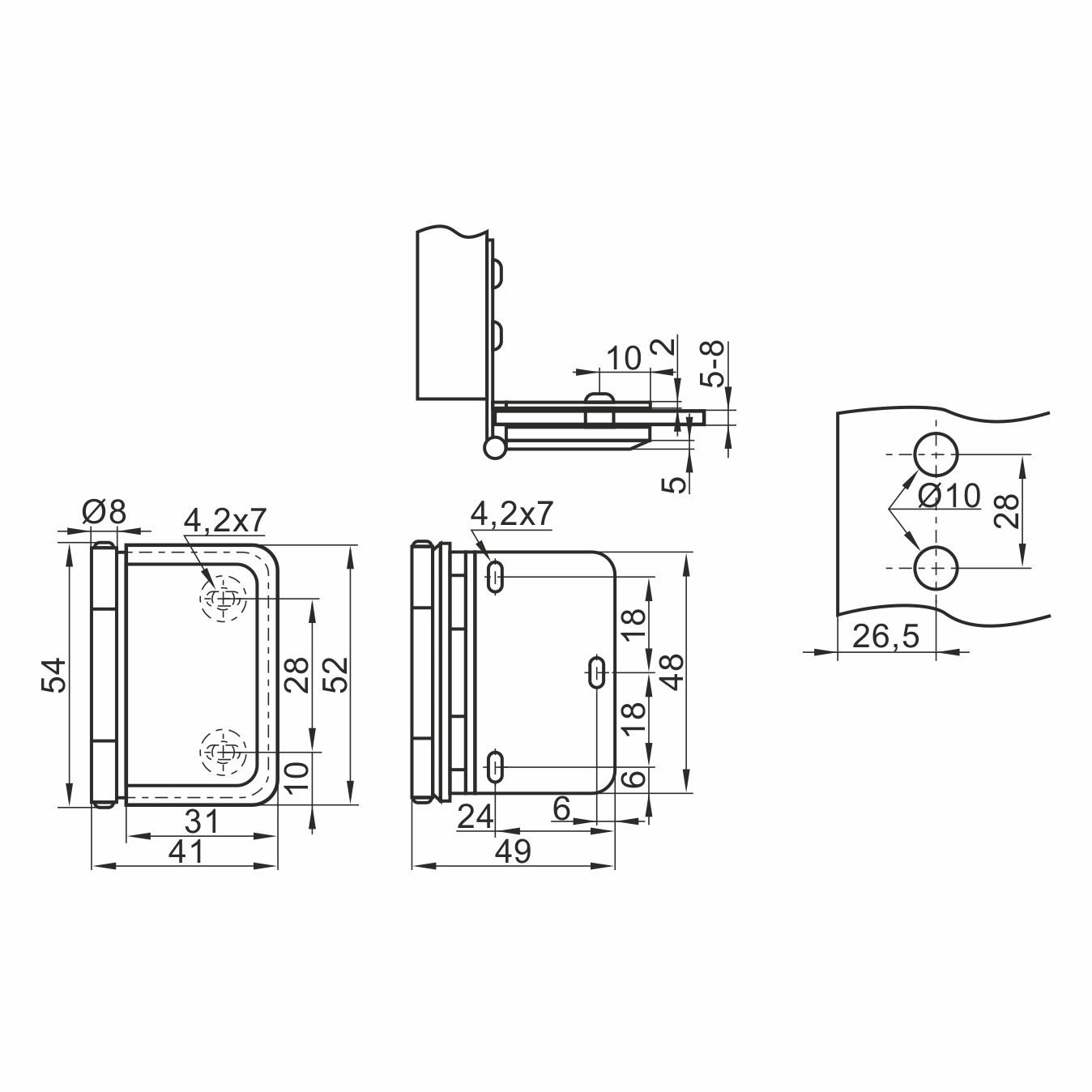

Technical drawing
Hinge · AiFO
Glass hinge (5-8 mm thick) stainless ZW-1506470
Item no. ZW-1506470 · EAN 2010000137406
- made of polished AISI-304 stainless steel
- for glass 5 mm to 8 mm thick
- for flush doors
- Material
- stainless steel
- Glass thickness [mm]
- 5 - 8 mm
- maximum load
- 12 kg / pair
- Glass thickness
- 5 - 8 mm
In brief
- Glass from 5 to 8 mm thick.
- Load up to 12 kg per pair – the lightest class in this group.
- Intended for inset doors.
- Stainless steel AISI-304 with a polished finish.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Glass hinge (5-8 mm thick) stainless ZW-1506470 – how to choose the right one
ZW-1506470 is a glass hinge in polished AISI-304 stainless steel, taking panes of 5–8 mm with a declared load of 12 kg per pair. The manufacturer specifies it for inset doors.
The term inset door is the key point here. The leaf sits within the outline of the carcass instead of overlaying its face, which dictates a different position of the pivot axis than with overlay doors.
Twelve kilograms per set is a figure that is used up quickly with 8 mm glass. This item targets small doors – for a larger format, models with a higher declared value have to be sought.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Glass doors set within the outline of the cabinet
- Small display cases and showcases
- Installations with a polished finish on the fittings
- Panes five to eight millimetres thick
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionHow does it differ from ZW-1506471?
In material, glass thickness and load capacity the two models coincide. The difference comes from the description: the manufacturer assigns 1506470 to inset doors, while for 1506471 there is no such qualification.
How do I check whether my door is an inset one?
Once closed, the leaf sits inside the opening and the face of the glass is set back relative to the carcass. With overlay doors the glass covers the edge of the cabinet from the outside.
