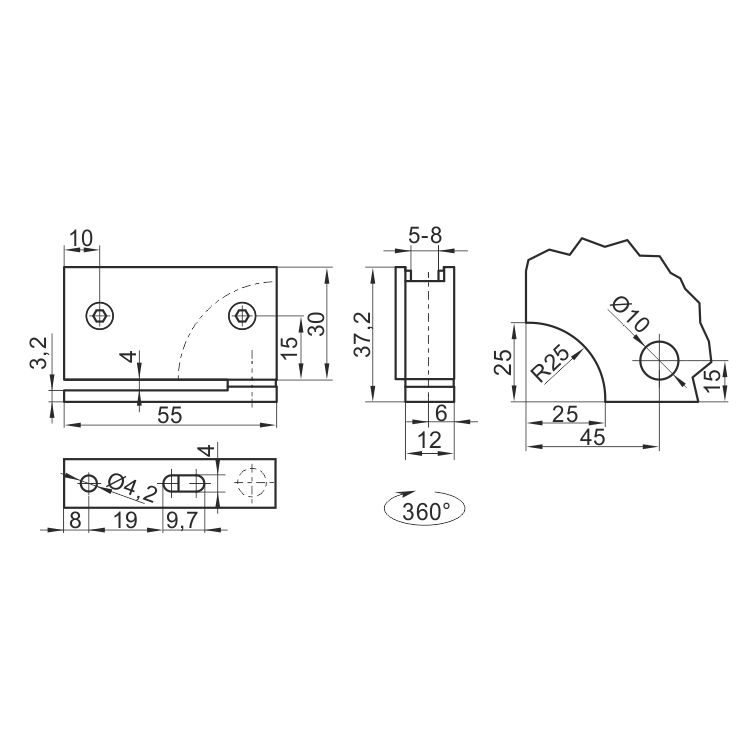

Technical drawing
Hinge · AiFO
Glass hinge (5-8 mm thick), left ZW-3010L
Item no. ZW-3010L · EAN 2010000113523
- made of chrome-plated brass, polyamide bush
- for glass 5 mm to 8 mm thick
- Material
- chrome-plated brass
- Glass thickness [mm]
- 5 - 8 mm
- maximum load
- 35 kg for a top/bottom pair of hinges
- Glass thickness
- 5 - 8 mm
In brief
- Left-hand version, load 35 kg for a top and bottom pair.
- Glass from 5 to 8 mm thick.
- Chrome-plated brass with a polyamide bush in the axis.
- The highest load capacity in the 5–8 mm glass range.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Glass hinge (5-8 mm thick), left ZW-3010L – how to choose the right one
ZW-3010L is a left-hand glass hinge in chrome-plated brass with a polyamide bush, taking panes of 5–8 mm and declared at 35 kg for a pair of hinges.
Thirty-five kilograms in this thickness range is a figure that opens the way to much larger leaves than twelve-kilogram fittings. With an 8 mm pane it gives a real reserve for a tall piece of glass.
A polyamide bush in the axis is a solution known from furniture hinges: it separates metal from metal and limits the play that develops after many cycles. With glass it has a further advantage – fewer vibrations transmitted to the pane.
