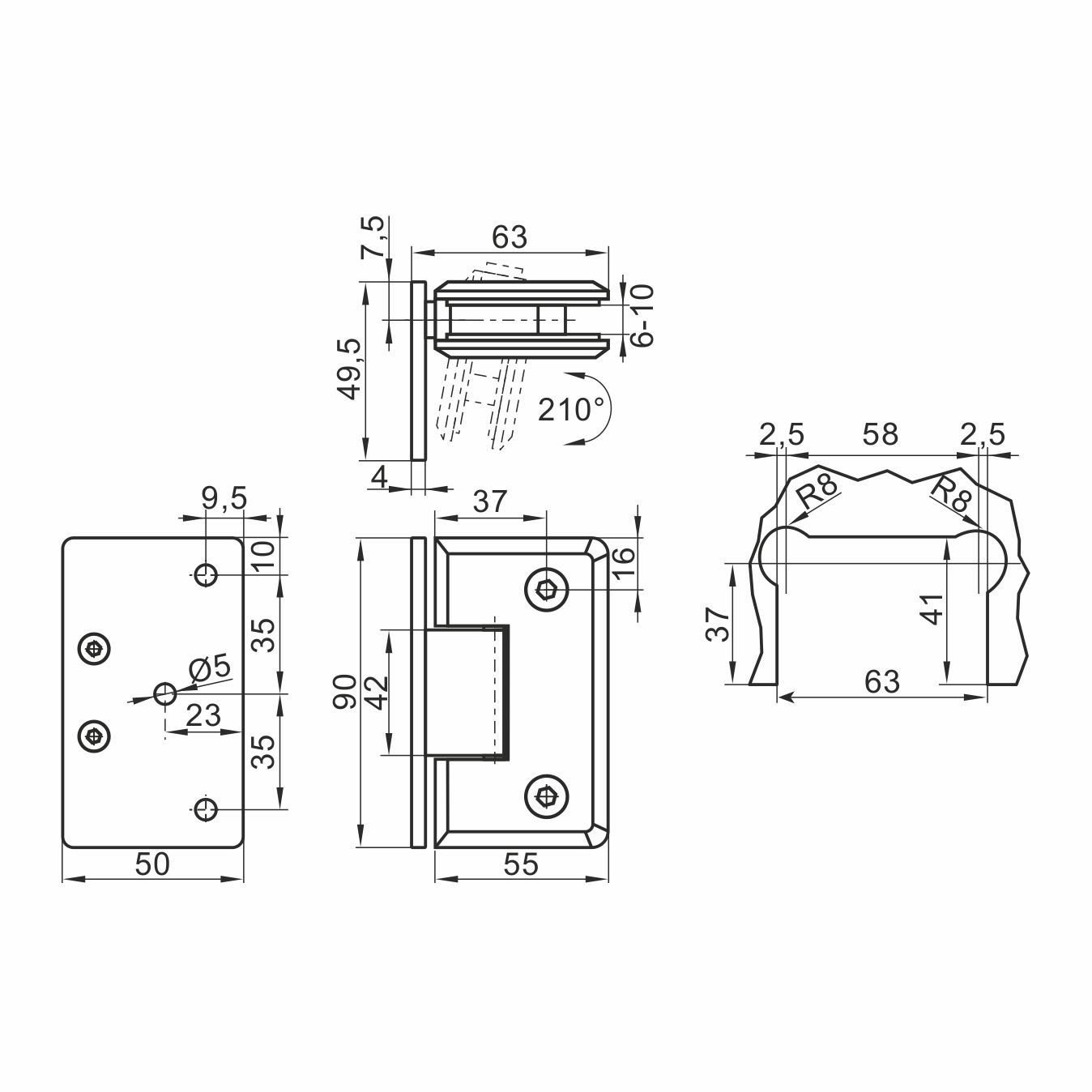

Technical drawing
Hinge · AiFO
Glass hinge (6-10 mm thick) polished ZW-GL12DB
Item no. ZW-GL12DB · EAN 2010000161210
- made of AISI-304 stainless steel
- for glass 6 mm to 10 mm thick
- wall mounting
- finish
- polished
- maximum load
- 45 kg / pair
In brief
- Made of AISI-304 stainless steel, polished surface.
- Load of 45 kg per pair of hinges.
- Glass 6–10 mm thick, wall mounting.
- The stainless alternative to the brass ZW-GL12.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Glass hinge (6-10 mm thick) polished ZW-GL12DB – how to choose the right one
ZW-GL12DB is a glass hinge made of AISI-304 stainless steel with a polished finish, declared at 45 kg per pair, taking panes of 6–10 mm and mounted to the wall.
Against the brass ZW-GL12 the difference comes down to the material. Stainless steel is the choice where the fitting is to sit next to other parts of the same grade or work under more intensive cleaning.
The 45 kg declaration refers to a pair, so two fittings are needed per leaf. With a 10 mm pane this value still sets a fairly specific upper format for the door.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Glazed partitions fixed to masonry
- Projects with stainless steel fittings
- Thick panes in doors opening both ways
- Interiors where chrome-plated brass is not wanted
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionWhich to choose: ZW-GL12 or ZW-GL12DB?
The glass and load parameters are shared. The material decides – chrome-plated brass in the first case, polished AISI-304 in the second.
Is the fitting suitable for entrance doors?
The data sheet describes wall mounting and the glass range, with no indication of outdoor use. For doors exposed to the environment it is worth confirming the operating conditions with the manufacturer.
Enquiry
We will quote Glass hinge (6-10 mm thick) polished ZW-GL12DB for your appliance
Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
