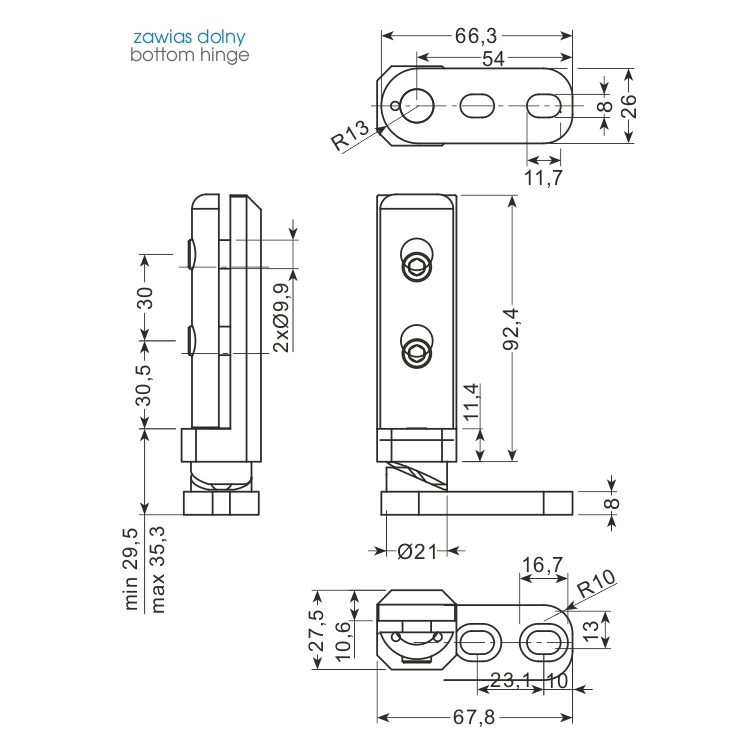

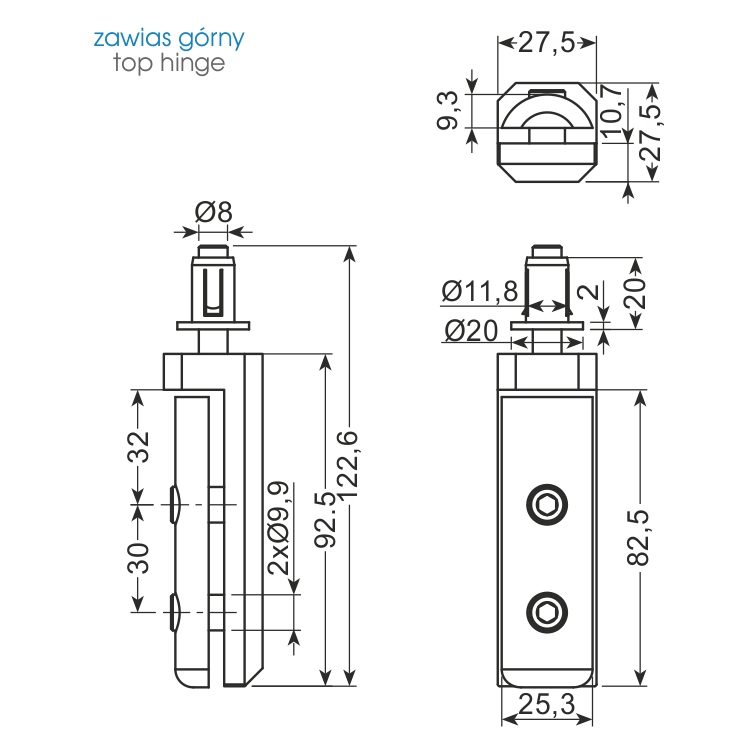

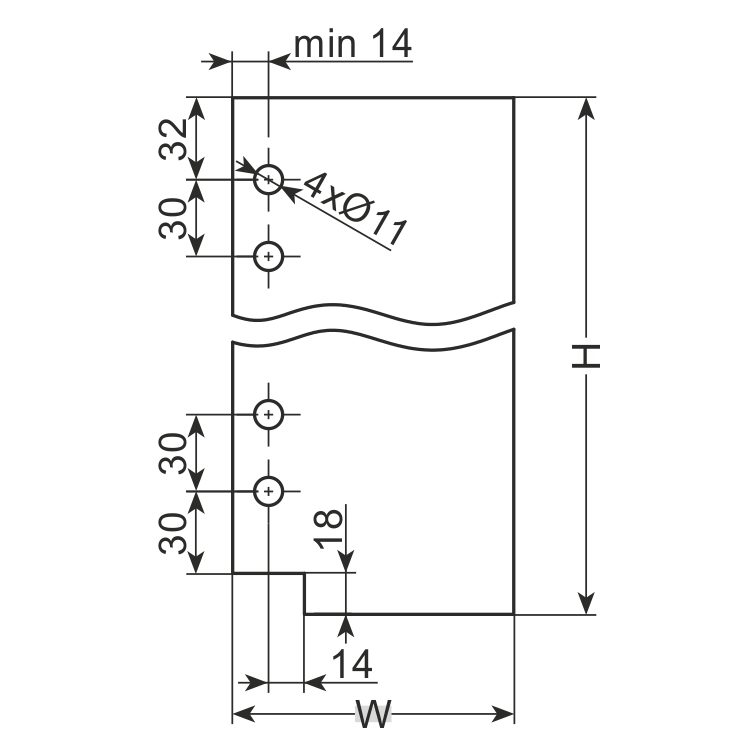

Technical drawing
Hinge · AiFO
Glass hinge (6-8 mm thick) ZW-8002 SET
Item no. ZW-8002 · EAN 2010000165461
- galvanised steel core covered with grey polyamide,
- for glass 6 mm to 8 mm thick,
- before installation it is recommended to apply grease to the bush.
- Material
- plastic
- Glass thickness [mm]
- 6 - 8 mm
- Glass thickness
- 6 - 8 mm
In brief
- Glass range 6–8 mm – the narrowest span among the glass fittings.
- A galvanised steel core coated with grey polyamide.
- The manufacturer recommends greasing the bush before installation.
- Supplied as a set.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Glass hinge (6-8 mm thick) ZW-8002 SET – how to choose the right one
ZW-8002 SET is a glass hinge of mixed construction: a galvanised steel core coated with grey polyamide. It takes panes from 6 to 8 mm thick and is supplied as a complete set.
A polyamide coating on a steel core gives two things at once – the stiffness of metal and a soft surface in contact with the glass. When clamping onto a pane, hard metal is always a risk.
The recommendation to grease the bush is a rarity in this range and deserves to be taken seriously. A dry bush can seize in its seat during installation, and reworking the joint with the glass already fitted is troublesome.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works

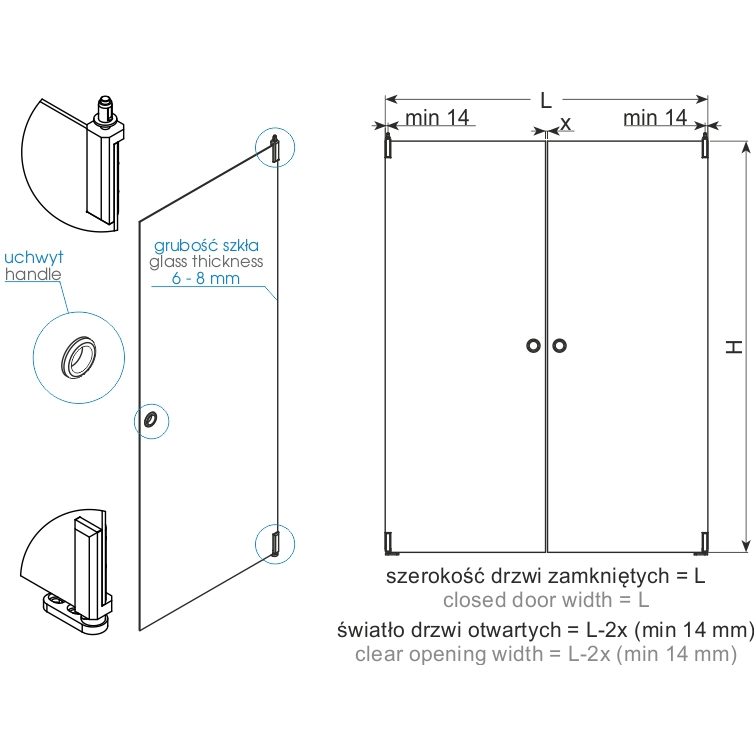

- Small glass doors with six- and eight-millimetre panes
- Installations with fittings in grey
- Joints in which metal should not touch the glass directly
- Installation carried out without specialist tooling
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionWhat grease should be used during installation?
The data sheet does not state the type, only the need to grease the bush. With plastic parts it is worth making sure that the product does not attack polyamide.
Will 10 mm glass fit in this fitting?
No, the declared range ends at 8 mm. For thicker panes the range includes models specified for 6–10 mm.
What does the set contain?
The manufacturer lists this item as a complete set but does not itemise its parts in the data sheet. On a first order it is worth confirming the contents of the package.
