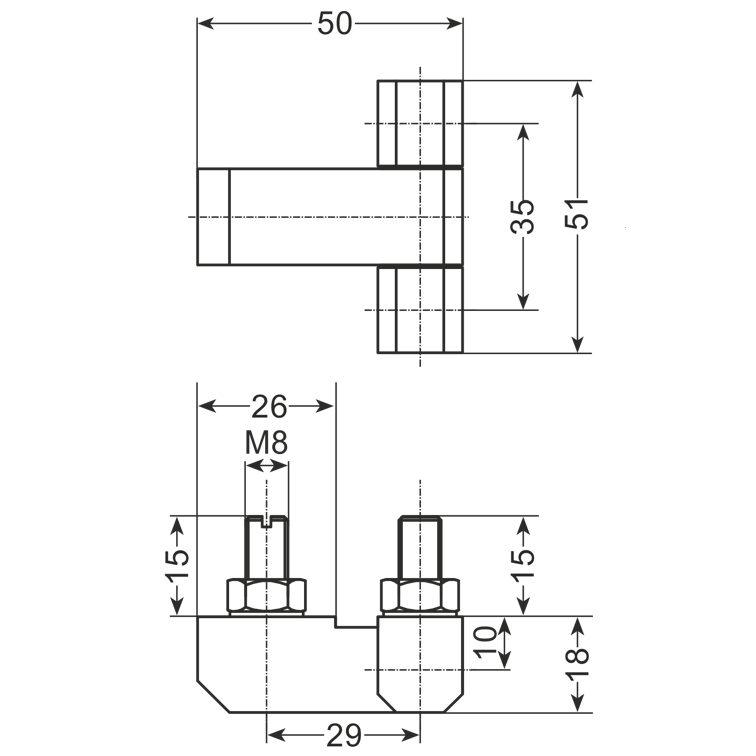

Technical drawing
Hinge · AiFO
Hinge (stainless steel) ZW-60046
Item no. ZW-60046 · EAN 2010000114063
- made of AISI-304 stainless steel
- Material
- stainless steel
In brief
- AISI-304, screw mounting.
- The highest number in the trio of item numbers sharing one catalogue description.
- No declared rotation angle or load capacity.
- An alternative to ZW-60040 and ZW-60044 in a different size.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Hinge (stainless steel) ZW-60046 – how to choose the right one
ZW-60046 is a screw-on hinge in AISI-304 grade stainless steel, described identically to the neighbouring ZW-60040 and ZW-60044.
This group goes into structures where the fitting material is a requirement and movement parameters play no part – service doors, guards and workshop cabinets.
If the design is still being drawn up, instead of hunting for differences between these three item numbers it is quicker to choose a model with explicit parameters. The manufacturer states them for the 600xx family hinges with a 270-degree angle and for the ZnAl5 models with a door weight.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Inspection doors in stainless steel housings
- Technical guards opened only occasionally
- Workshop installations built to measure
- Replenishing a service department's stock
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionDoes a difference in number mean a difference in size?
Usually yes, but the data sheet does not confirm it outright. Where the fit matters, ask for drawings of all three item numbers and compare them before ordering.
Will this hinge cope with heavy doors?
There is no basis on which to judge – the load capacity is not declared. For heavy leaves, the screw-on range includes models rated at 20 and 30 kg.
Enquiry
We will quote Hinge (stainless steel) ZW-60046 for your appliance
Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
