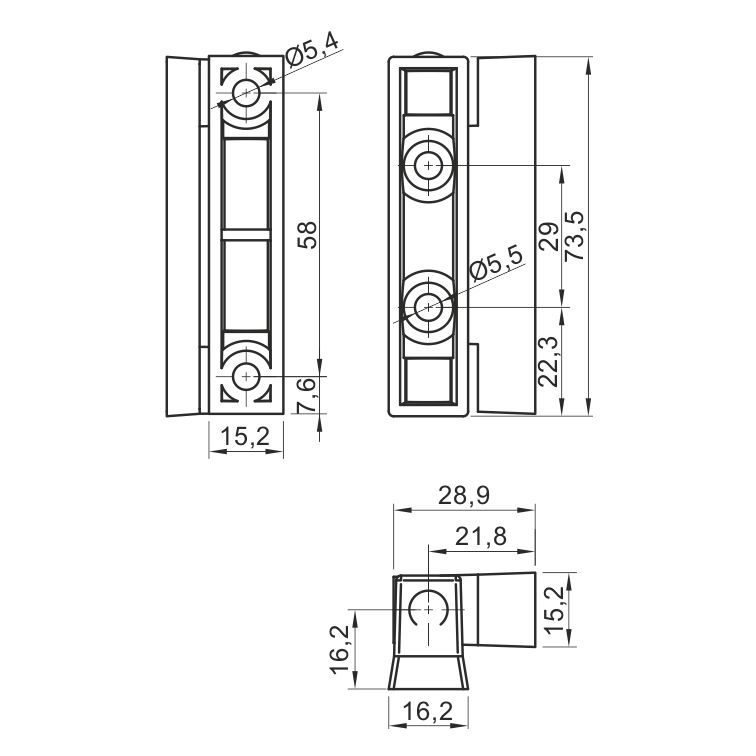

Technical drawing
Hinge · AiFO
Hinge (polyamide) ZW-418PV
Item no. ZW-418PV · EAN 2010000207215
- made of black polyamide
- 2 screws Ø5.4 mm
- polyamide pin
- Material
- polyamide
- maximum door weight
- 10 kg
In brief
- Black polyamide, maximum door weight 10 kg.
- Fixed with two screws 5.4 mm in diameter – the fewest holes in this family.
- The pin is also polyamide, with no steel parts.
- Structurally the lightest item among the screw-on hinges.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Hinge (polyamide) ZW-418PV – how to choose the right one
ZW-418PV is a hinge in black polyamide intended for doors weighing up to 10 kg, fixed with two Ø5.4 mm screws. The pin is also made of polyamide.
An all-plastic construction means there is no metal in the pivot joint. Nothing here will corrode, but neither will anything carry a load greater than the manufacturer declares – ten kilograms is the limit, not the starting point.
Two fixing points are an advantage on thin fronts and narrow profiles, where there is simply no room for four holes. The cost is lower resistance to pull-out when the leaf is jerked.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Light service doors and guards
- Narrow profiles in which four screws will not fit
- Joints exposed to moisture where metal is undesirable
- Furniture in which the fitting is to disappear on a black front
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionHow does it differ from ZW-420PV and ZWW-421PV?
In the number and diameter of the screws and in the pin material. ZW-418PV has two Ø5.4 mm screws and a polyamide pin; the other two models have four Ø5 mm screws and a steel pin.
Will a polyamide pin withstand daily use?
Within the declared 10 kg yes, but it is a part subject to wear. For doors opened very frequently, a model with a steel pin makes more sense.
Enquiry
We will quote Hinge (polyamide) ZW-418PV for your appliance
Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
