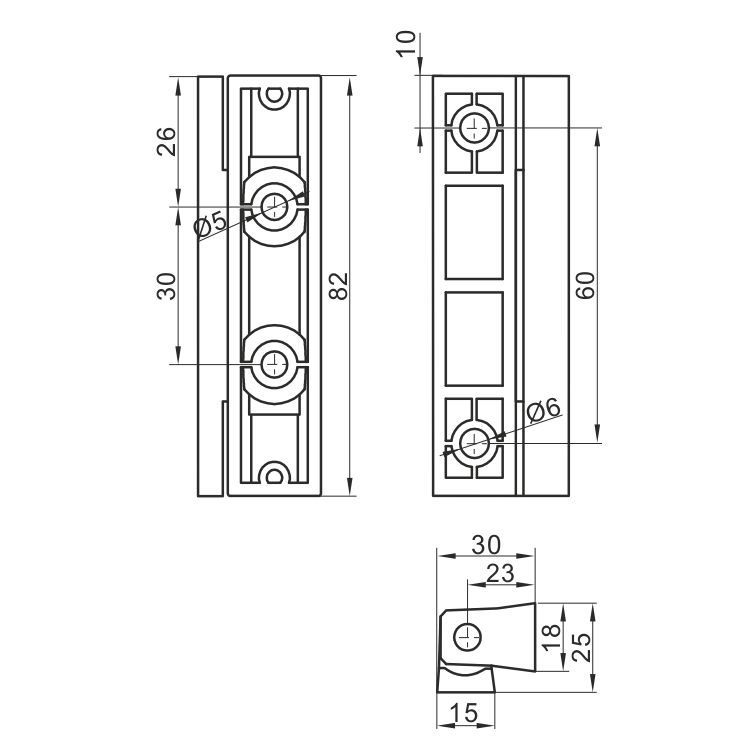

Technical drawing
Hinge · AiFO
Hinge (polyamide) ZW-420PV
Item no. ZW-420PV · EAN 2010000055441
- made of black polyamide
- 4 screws Ø5 mm
- steel pin
- used with a 10 mm washer ZW-420CR
- Material
- polyamide
- maximum door weight
- 10 kg
In brief
- Polyamide in black, load capacity up to 10 kg per door.
- Four Ø5 mm screws and a steel pin on the axis of rotation.
- The manufacturer supplies it together with the 10 mm washer ZW-420CR.
- The only polyamide hinge in this group with an assigned spacer.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Hinge (polyamide) ZW-420PV – how to choose the right one
ZW-420PV is a black polyamide hinge for doors up to 10 kg, screwed on with four Ø5 mm screws and fitted with a steel pin. The manufacturer describes it together with the 10 mm washer ZW-420CR.
A steel pin in a plastic body is a typical compromise: the body does not corrode and weighs nothing, while the most heavily loaded part of the axis is metal. Wear is then transferred to the plastic, which is cheaper to replace.
The washer is a separate item and easy to forget. Without it the hinge sits ten millimetres closer to the body, which on a flush front changes the whole geometry of the leaf.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Small doors not exceeding ten kilograms in weight
- Joints mounted on a recessed surface with a spacer
- Installations with black fittings visible on the front
- Structures requiring four fixing points in plastic
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionDo I have to order the ZW-420CR washer?
The manufacturer lists it with this hinge, so it is safer to include it. It is a cheap item, and its absence can hold up the fitting of a whole batch of doors.
Will the hinge work in a cold store?
The data sheet does not state an operating temperature range for this model. If the fitting is to work at sub-zero temperatures, it is worth confirming this with the manufacturer before ordering.
