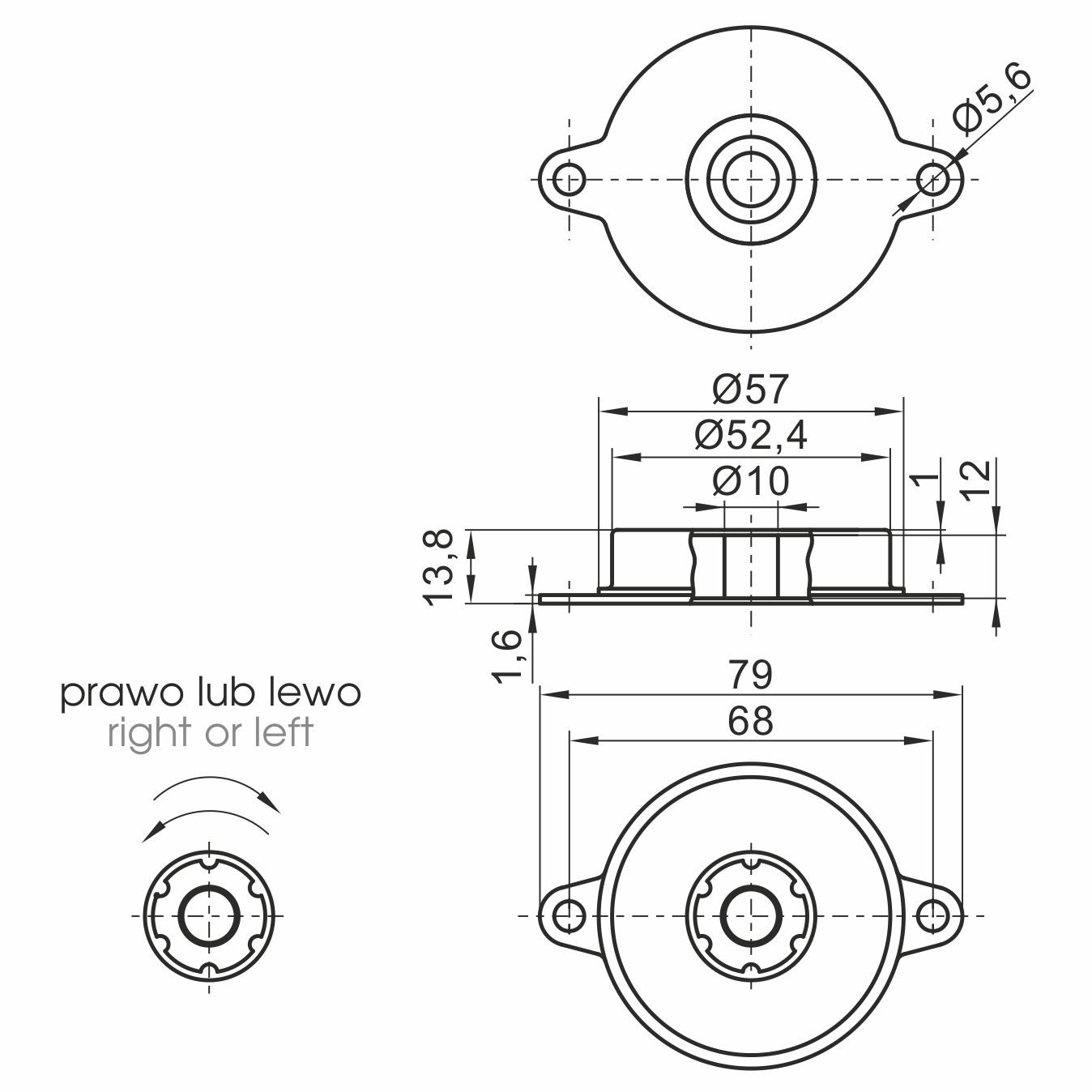

Technical drawing
Hinge · AiFO
Slow-closing hinge (3.0±0.3 N*m) ZW-TRD-303
Item no. ZW-TRD-303 · EAN 2010000137024
- housing made of galvanised steel
- interchangeable left/right version
- Material
- galvanised steel
- max. rotational speed
- 50 rpm
- operating temp.
- -10/50°C
- maximum torque
- 3.0±0.3 N*m *
In brief
- Torque 3.0 ±0.3 N·m – the lowest in the TRD family.
- The only model in this series with a tolerance of ±0.3 instead of ±0.5.
- Operating temperature from -10 to 50°C, rotational speed up to 50 rpm.
- Interchangeable mounting in a left-hand and a right-hand version.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Slow-closing hinge (3.0±0.3 N*m) ZW-TRD-303 – how to choose the right one
ZW-TRD-303 is a slow-closing hinge with a torque of 3.0 ±0.3 N·m in a galvanised steel housing. The manufacturer states an operating temperature range from -10 to 50°C and a maximum rotational speed of 50 rpm.
It is the weakest member of a five-part series in which the torque rises by one newton metre at a time up to 7.0 N·m. The tighter tolerance on this model – ±0.3 instead of ±0.5 – means the most predictable flap behaviour in the whole family.
The 3.0 model is the starting point for light lids and small flaps. If the flap drops too quickly after a trial installation, the next step is ZW-TRD-403, one newton metre stronger.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Light flaps and lids in technical installations
- Joints where the smallest spread of torque matters
- Appliances working in the range from -10 to 50°C
- Structures mounted interchangeably in both directions
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionWhy is the tolerance of this model tighter?
The manufacturer states ±0.3 N·m only for the 3.0 model and ±0.5 for the rest. In practice this means less spread between pieces from the same delivery.
How is the torque matched to a particular flap?
It depends on the weight of the flap and on the distance of its centre of mass from the axis of rotation. Without calculations, the surest way is to check on a trial unit, starting from the lower torque.
