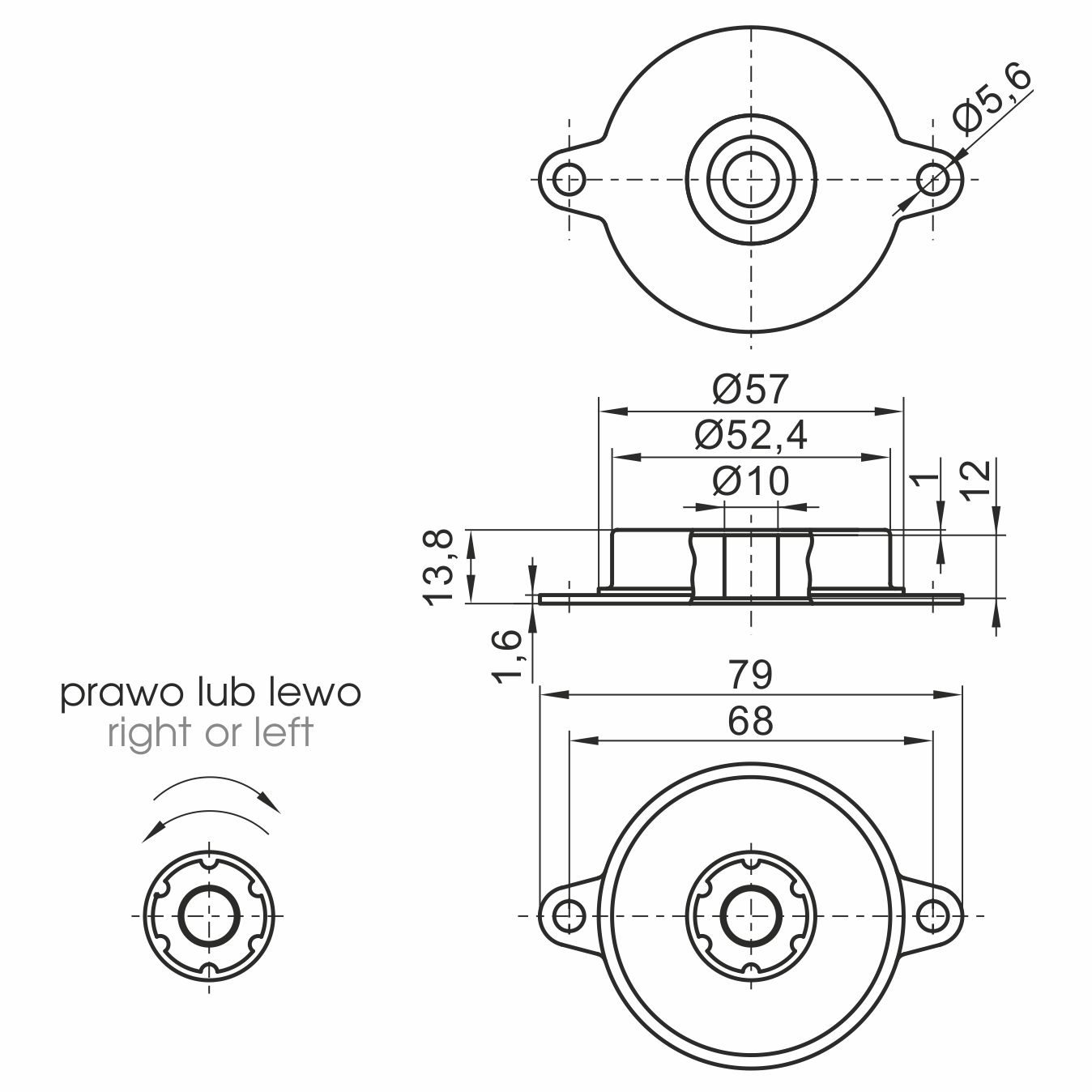

Technical drawing
Hinge · AiFO
Slow-closing hinge (5.0±0.5 N*m) ZW-TRD-503
Item no. ZW-TRD-503 · EAN 2010000137048
- housing made of galvanised steel
- interchangeable left/right version
- Material
- galvanised steel
- max. rotational speed
- 50 rpm
- operating temp.
- -10/50°C
- maximum torque
- 5.0±0.5 N*m *
In brief
- Torque 5.0 ±0.5 N·m – the middle of the series range.
- Galvanised steel, interchangeable left/right mounting.
- Operating temperature from -10 to 50°C.
- Rotational speed not exceeding 50 rpm.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Slow-closing hinge (5.0±0.5 N*m) ZW-TRD-503 – how to choose the right one
ZW-TRD-503 is a slow-closing hinge with a torque of 5.0 ±0.5 N·m in a galvanised steel housing, intended for mounting on either side of the flap.
The 5.0 model sits exactly in the middle of a series spanning 3.0 to 7.0 N·m. When selecting without earlier trials it is usually the most sensible first shot – it leaves room for correction in either direction.
It is worth remembering that the torque does not describe the weight of the flap, only the resistance offered to the movement. The same lid mounted on a longer arm will behave quite differently on the same hinge.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Flaps of medium weight and typical reach
- A first trial unit before the final torque is chosen
- Lids on appliances working in the cold
- Structures with flaps tilting in both directions
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionWhich model should the selection start from?
With no data on the reach and the weight of the flap, the middle 5.0 model is a safe starting point. From there it is easy to drop to 4.0 N·m or move up to 6.0 N·m.
Will a slow-closing hinge replace a self-closer?
No. This mechanism slows the movement of the flap but does not bring it to the closed position. Separate items in this range serve for automatic closing.
Enquiry
We will quote Slow-closing hinge (5.0±0.5 N*m) ZW-TRD-503 for your appliance
Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
