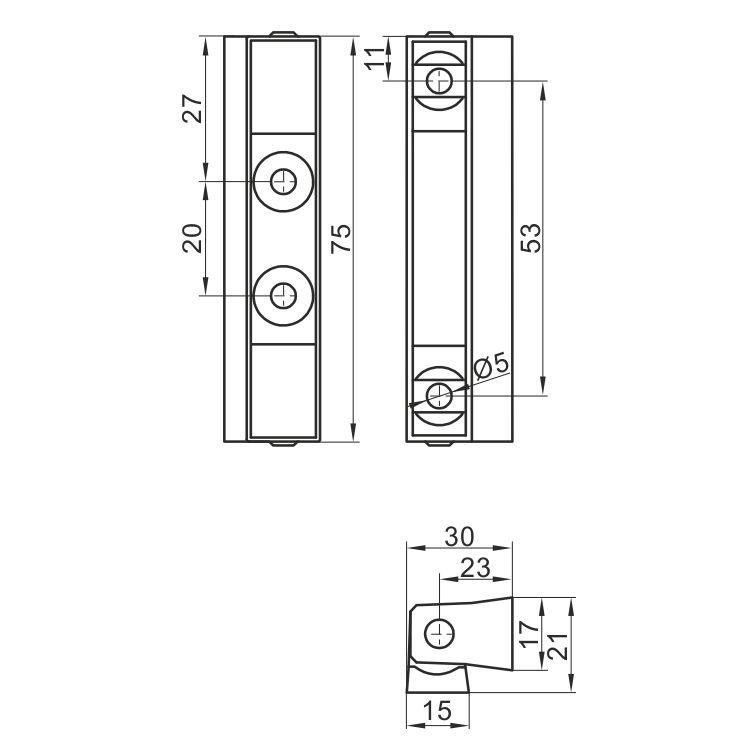

Technical drawing
Hinge · AiFO
Hinge (ZnAl) ZW-310
Item no. ZW-310 · EAN 2010000052730
- made of chrome-plated ZnAl5 alloy
- 4 screws Ø5 mm
- Material
- ZnAl5
- maximum door weight
- 10 kg
In brief
- Chrome-plated ZnAl5 alloy, doors up to 10 kg.
- Four screws of 5 mm diameter.
- The simplest item in the chrome-plated family at this load capacity.
- No additional spacers or bushes in the description.
Prices and stock levels are in the B2B shop. Series orders and non-standard versions are quoted individually.
Hinge (ZnAl) ZW-310 – how to choose the right one
ZW-310 is a hinge in chrome-plated ZnAl5 alloy, intended for doors weighing up to 10 kg and fixed with four Ø5 mm screws.
This is the basic item for light leaves in a metal execution. Where polyamide would be too soft and full stainless steel not justified by cost, a chrome-plated casting is the natural middle ground.
The description lists no supplementary components, which simplifies ordering. In the same load class there is ZW-305, with a choice of chrome or matt finish.
How to choose a hinge for the door weight and the mounting method – we explained it in the selection guide for this category.
Where it works
- Light doors in refrigerated furniture
- Cabinets and display cases with a small leaf
- Replacing a worn fitting without changing the hole spacing
- Series orders for one repeatable type of door
FAQ
Frequently asked questions
Have not found your answer? Give the door weight and the mounting method – we will select the hinge and the brackets.
Ask a questionHow does ZW-310 differ from ZW-305?
Both items declare 10 kg and four Ø5 mm screws. ZW-305, however, has two finishes to choose from – chrome and matt under the index ZW-305MT – which the manufacturer does not provide for ZW-310.
What happens if the declared 10 kg is exceeded?
The hinge will not break straight away, but the joint will start to work loose and the leaf will gradually drop. For heavier doors the range offers models for 15, 20 and 30 kg.
Enquiry
We will quote Hinge (ZnAl) ZW-310 for your appliance
Give the leaf weight, the mounting method and the type of door – we will reply with a selection and a quote.
