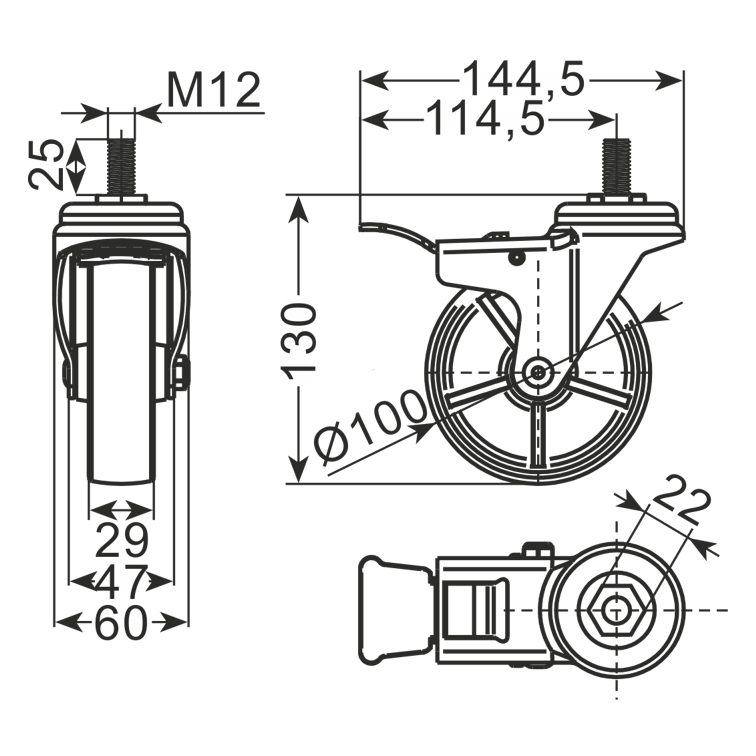

Technical drawing
Castor set · AiFO
Castor set with a brake Ø100 mm (nylon/galvanised) KJ-O-4719
Item no. KJ-O-4719 · EAN 2010000046296
- fork made of galvanised steel
- nylon wheel
- Housing material
- galvanised
- Wheel material
- nylon
- Version
- with a brake
- Wheel diameter [mm]
- fi100 mm
- Maximum load
- 100 kg
- Wheel diameter
- Ø100 mm
In brief
- A Ø100 mm set with a brake, a nylon wheel, a galvanised fork.
- The load capacity declared by the manufacturer is 100 kg per piece.
- KJ-O-4719 is the equivalent of item KJ-O-4718.
- The range in this diameter covers both nylon and rubber versions.
Prices and stock levels are in the B2B shop. Sets for a specific appliance are put together to order.
Castor set with a brake Ø100 mm (nylon/galvanised) KJ-O-4719 – how to choose the right one
KJ-O-4719 is a castor set 100 mm in diameter with a lock, on a nylon wheel in a galvanised fork. The declared load is 100 kg.
One hundred millimetres of diameter is in practice the point at which a unit stops being caught by small obstacles. A drainage grating, a threshold strip or the edge of a tile stop requiring a tug and simply start being driven over.
The consequence for the whole installation has to be kept in mind, though. Taller wheels raise the unit, and that changes the relationship of the worktop to the adjoining furniture – something checked at the design stage, not after delivery.
How to choose a castor for the load and the floor – we explained it in the selection guide for this category.
Where it works
- Units rolled over thresholds and strips
- Back-of-house areas with linear drains in the floor
- Transport trolleys carrying a heavy load
- Structures designed with a margin of height
FAQ
Frequently asked questions
Have not found your answer? Give the weight of the appliance and the type of floor – we will select the wheel set.
Ask a questionWill changing the wheels alter the worktop height?
Yes, swapping a set for a larger diameter raises the whole unit. Where the worktop is fitted into a run, this has to be calculated before ordering.
Can a set contain castors both with and without a brake?
It can, and it is a typical arrangement, provided they all have the same wheel diameter. The mounting height has to stay the same at every point.
Enquiry
We will quote Castor set with a brake Ø100 mm (nylon/galvanised) KJ-O-4719 for your appliance
Give the weight of the appliance, the type of floor and the mounting method – we will reply with a selection and a quote.
