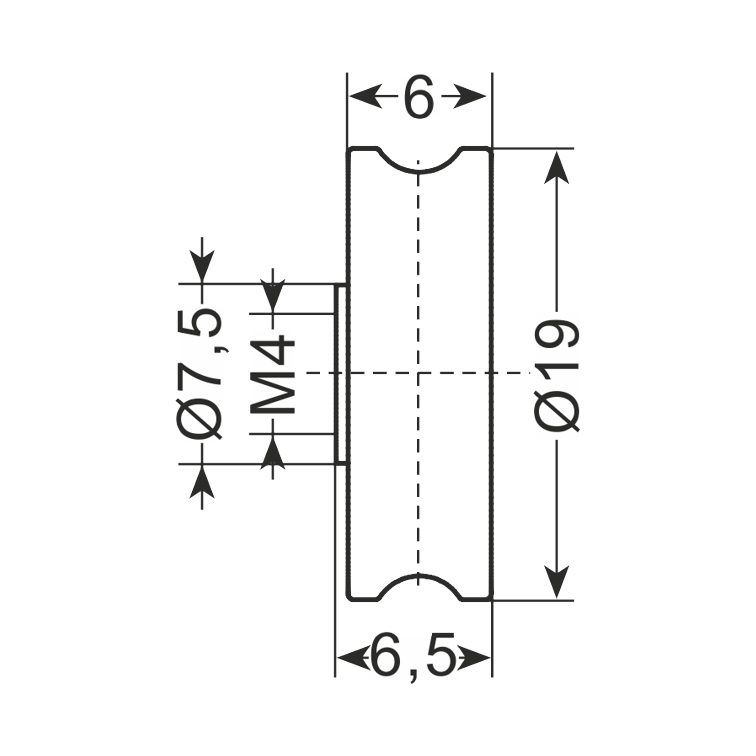

Technical drawing
Roller · AiFO
Roller Ø19 mm (polyamide/galvanised/ball bearing) KP-AC-2582
Item no. KP-AC-2582 · EAN 2010000054642
- made of galvanised steel, polyamide wheel
- ball bearing
- Housing material
- galvanised
- Wheel material
- polyamide
- Wheel diameter [mm]
- fi19 mm
- Wheel diameter
- Ø19 mm
In brief
- A Ø19 mm roller with a polyamide wheel, a galvanised housing and a ball bearing.
- The bearing sets it apart from rollers working on a plain bush.
- The twin item with the same data is KP-AC-2583.
- The data sheet does not state the permissible load of a single roller.
Prices and stock levels are in the B2B shop. Sets for a specific appliance are put together to order.
Roller Ø19 mm (polyamide/galvanised/ball bearing) KP-AC-2582 – how to choose the right one
KP-AC-2582 is a roller 19 mm in diameter with a polyamide wheel, a galvanised housing and a ball bearing inside. It is one of two items of this type in the catalogue.
A ball bearing changes above all the resistance at start-up. A roller on a plain bush offers the greatest resistance in the first moment, while one with balls starts gently – with a leaf opened hundreds of times a day, everyone on the shift notices it.
This gain lasts as long as no dirt gets into the bearing. Washing with a jet aimed straight at the guide rail is the shortest route to seizing the balls and losing the whole advantage of this design.
How to choose a castor for the load and the floor – we explained it in the selection guide for this category.
Where it works
- Leaves and drawers opened very frequently
- Places where ease of movement at start-up matters
- Replacing a bush-type roller with a bearing-mounted version
- Guide rails kept clean and dry
FAQ
Frequently asked questions
Have not found your answer? Give the weight of the appliance and the type of floor – we will select the wheel set.
Ask a questionDoes a ball bearing require maintenance?
No lubrication or adjustment is provided for here. The part works until it seizes and is then replaced as a whole.
How can a seized bearing be recognised?
The wheel stops turning and begins to slide along the rail, leaving a flat spot on the tread. The movement becomes jerky and the resistance rises evenly over the whole travel.
How does it differ from KP-AC-2583?
The catalogue data of both items are identical, so the difference concerns a detail of construction not covered by the description. When replacing, the marking on the old part decides.
