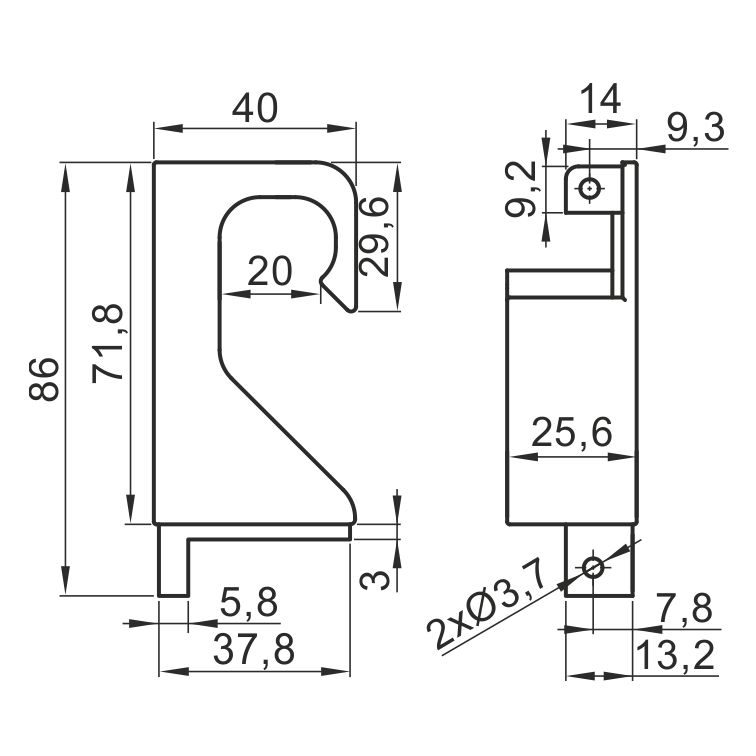

Technical drawing
Lid or cap · AiFO
Integrated handle end cap, left (nickel-plated ZnAl) KP-PS2 L
Item no. KP-PS2 · EAN 2010000151228
- for doors with a sheet thickness of 0.8 mm
- made of stainless steel
- Material
- stainless steel
- version
- left
In brief
- Integrated handle end cap, left-hand version, symbol KP-PS2 L.
- Intended for doors with a sheet thickness of 0.8 mm.
- The catalogue name indicates a nickel-plated ZnAl version, while the description states stainless steel.
- Its right-hand counterpart is KP-PS2 P.
Prices and stock levels are in the B2B shop. Plastic parts are also made to the customer's drawing.
Integrated handle end cap, left (nickel-plated ZnAl) KP-PS2 L – how to choose the right one
Integrated handle end cap KP-PS2 L is a left-hand element, intended for doors with a sheet thickness of 0.8 mm. It closes off the handle recess set into the leaf.
An integrated handle is a recess cut into the sheet, not an element glued on from the outside. Without the end cap, such a recess is left open at the side, so water and dirt get in and the edge of the sheet stays exposed.
Sheet thickness is a binding value in selection. The element wraps around the edge of the leaf, so at a different dimension it will not seat correctly, and a difference of tenths of a millimetre cannot be judged by eye.
What each accessory is for and how to choose the material – we explained it in the selection guide for this category.
Where it works
- Doors with an integrated handle on the left-hand side
- Leaves made of 0.8 mm sheet
- Closing off the recess before sanitary acceptance
- Replacement of a lost element on one side
FAQ
Frequently asked questions
Have not found your answer? Tell us the mounting location and the conditions – we will select the material and the part.
Ask a questionWhat material is this end cap made of?
The manufacturer's data is not clear-cut here: the name refers to a nickel-plated ZnAl alloy, while the description refers to stainless steel. If the material matters for acceptance purposes, it is worth confirming it before ordering.
Can the left-hand version be fitted on the right-hand side?
No, the two versions are mirror images of each other. For the other side, a separate item is provided, with a symbol ending in the letter P.
