Hinges are a key element in the construction of refrigeration units, low temperature, ultra-low temperature, and neutral furniture with a wide range of applications – from foodservice to the medical industry. Their proper selection significantly impacts the functionality, safety, and appearance of the device.
Types of hinges and their technical specification
AiFO Components offers various hinge models, but due to the wide range of topic, this article focuses on hinges in refrigeration cabinets or tables – implying all standing devices such as cabinets and tables with full or glass doors.
In such furniture, both recessed self-closing hinges like ZW-TRS or the ZW-7000 line, and side hinges such as ZW-420PV or ZW-303 are used. Each type of hinge is adapted to the specific requirements of the devices, taking into account parameters such as:
- Functionality: self-closing vs non self-closing.
- Aesthetics: concealed mounting in doors vs visible external hinges.
- Durability and load capacity: ability to maintain the weight of the door without deformation.
- Dimensions and mounting method: adaptation to a specific model of the device.
- Price: availability of solutions in various price ranges.

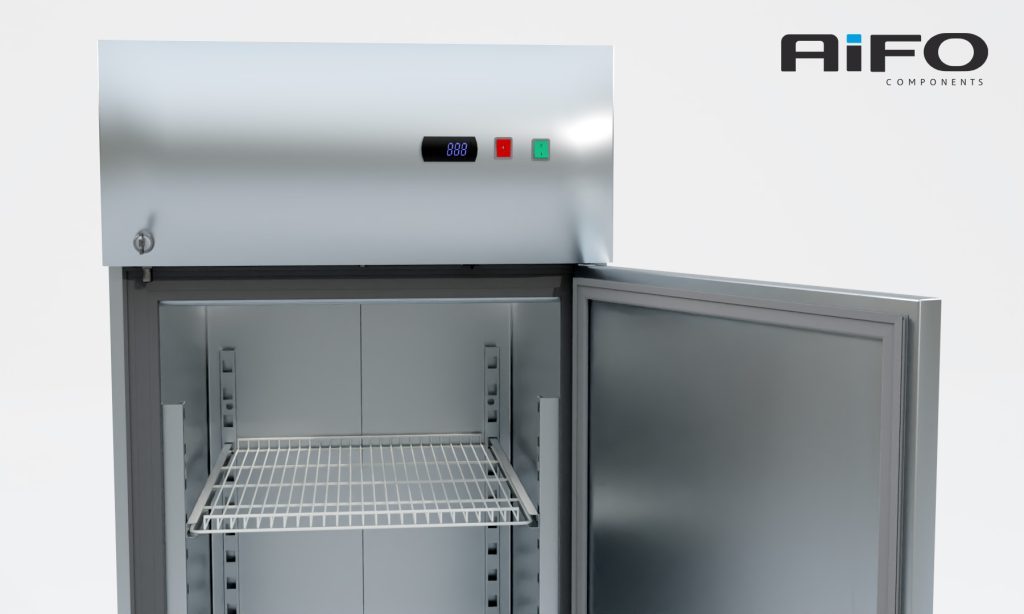

Examples of application

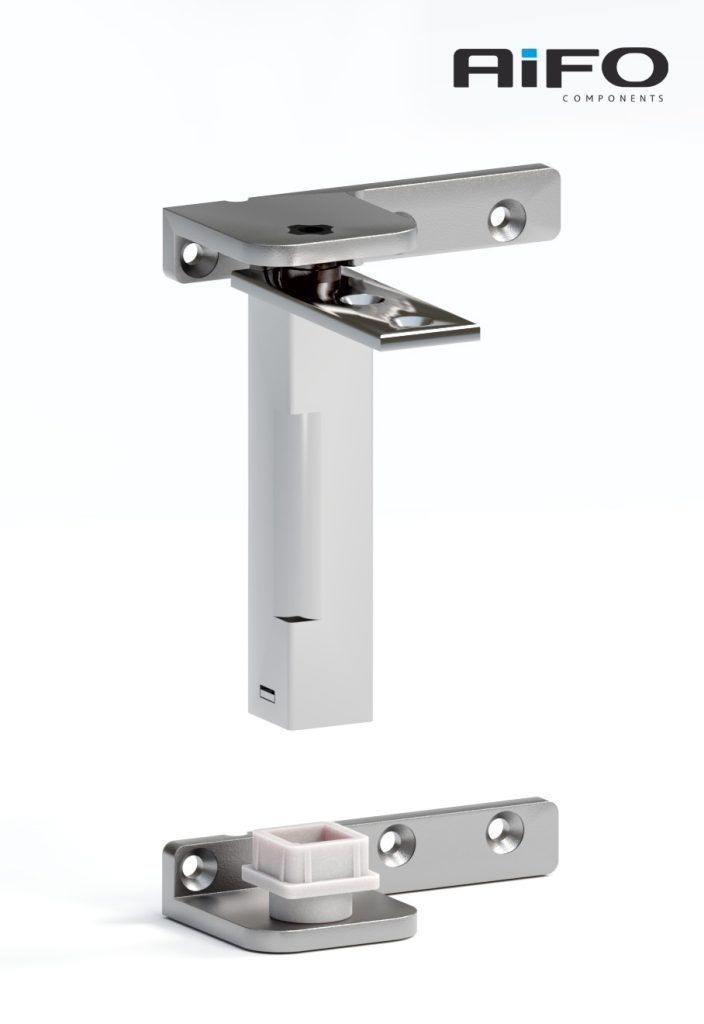

Self-closing TRS hinge – ideal for users requiring automatic door closing functionality. This hinge includes a double-action spring, allowing the door to close at an opening angle of less than 90 degrees. Beyond this angle, the door remains open, facilitating the loading of the device.

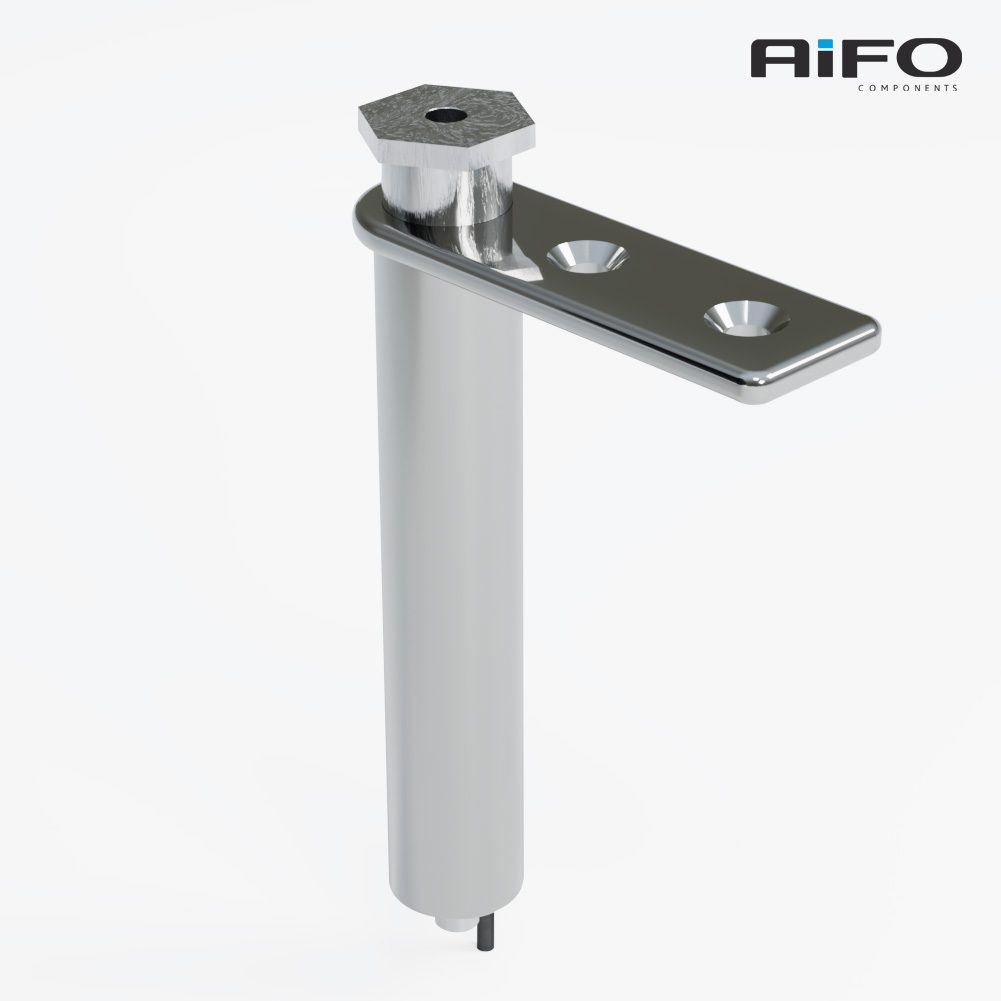

AiFO Components also offers other models of self-closing hinges, including this ZW-9011 hinge.

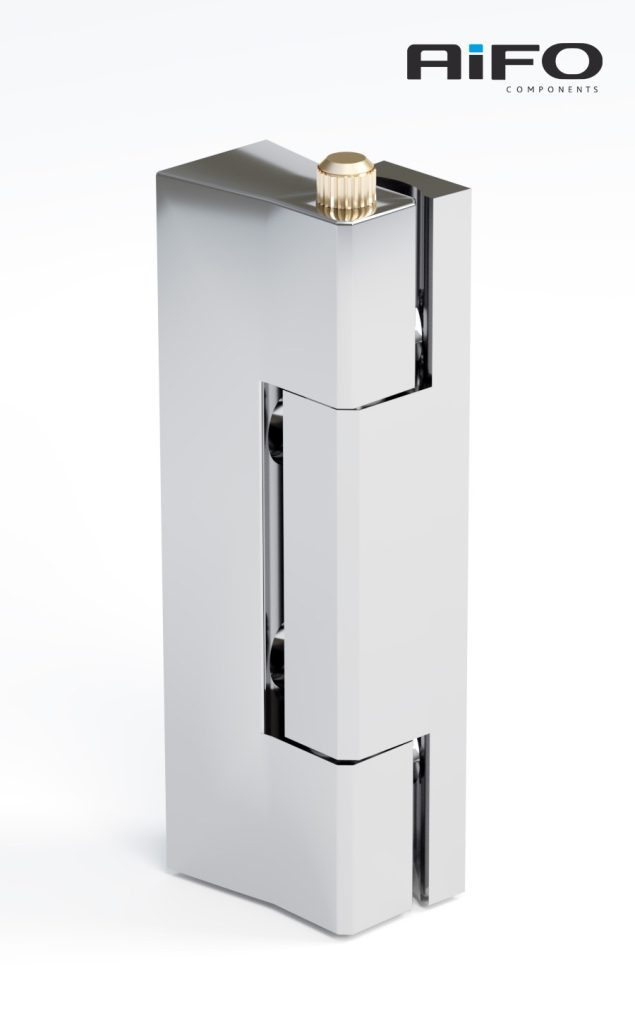

ZW-303 hinge – this model is mounted externally, enabling additional strength and rigidity of the door. It requires manual closing but is ideal for heavier doors. In some cases, it requires the use of a handle with a lock to prevent accidental door opening. An additional feature is the decorative nature of the hinge due to the galvanic coating that adds shine.

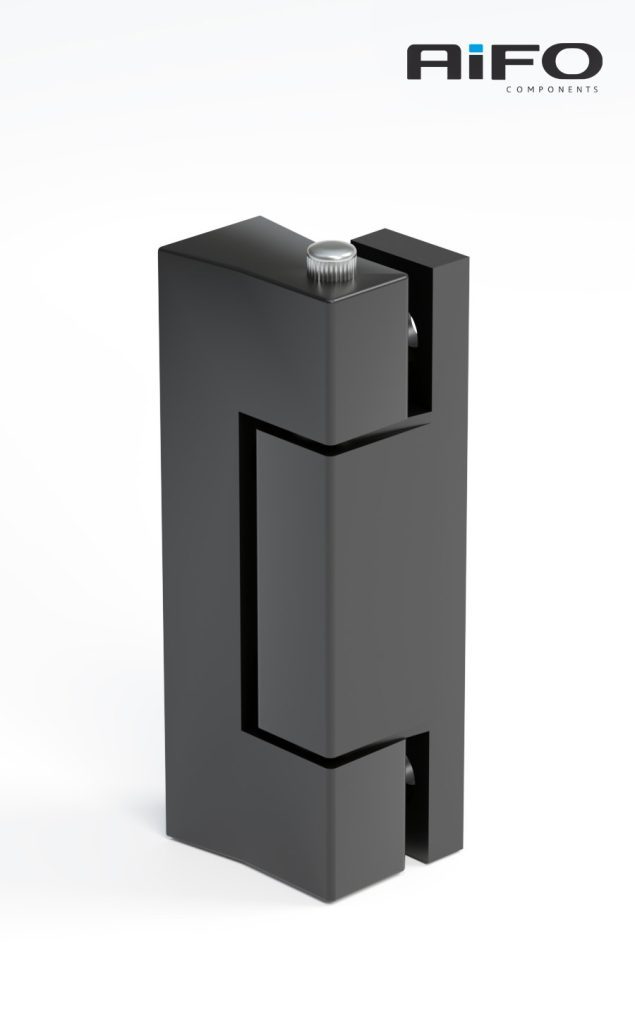

The ZW-420PV hinge, made of black polyamide, may also be a good alternative.
Technical support
We provide technical support from the AiFO Components team for each project. We offer assistance in selecting appropriate hinges and other components. All tailored to the specific needs and requirements of a given device.
Check out our entire range, which includes many types of latches, handles, hinges, wheels. Contact our specialists and use our B2B store, where you can easily estimate and select the right components for your refrigeration furniture.
